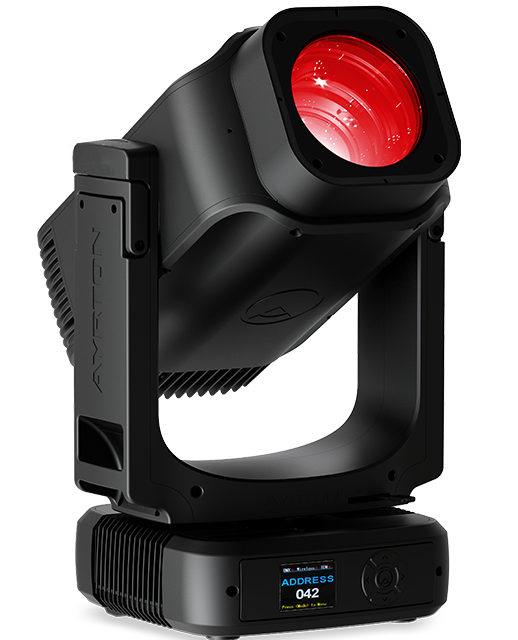

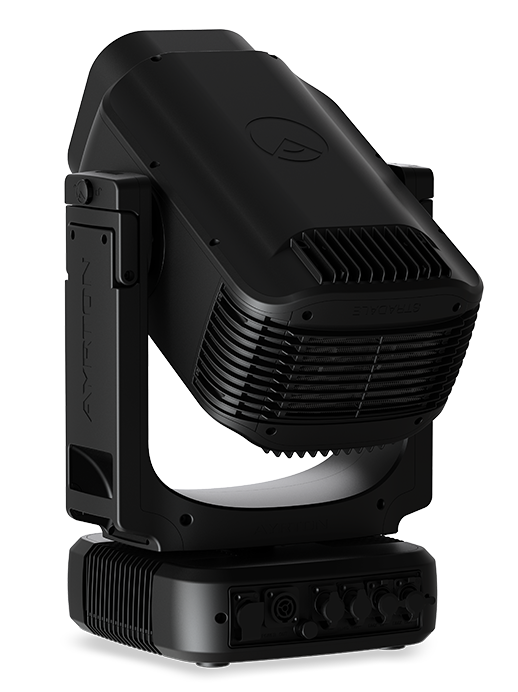

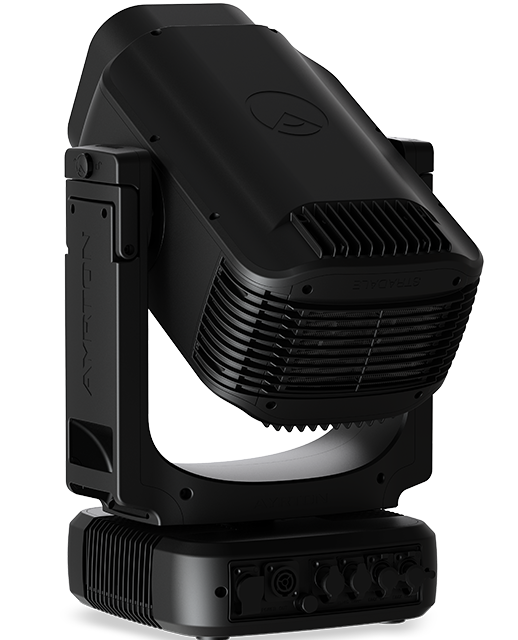

Stradale Profile
small in size, immense in power
Stradale Profile embodies the principle of perfect scalability within Ayrton’s Ultimate series, standing as the first ultra-compact luminaire of the brand-new 1 Series.
Following in the footsteps of Rivale, it reduces its visual footprint by 15%, achieving this through meticulous engineering and extreme miniaturisation. Every detail was optimised—streamlining the structure, refining effect modules, and minimising component size—to push integration to new limits. This unique format led to the development of an all-new high-efficiency 330 W LED module, precisely calibrated at 6500 K, delivering a luminous output of 20,000 lm with optimal black body positioning to ensure perfectly neutral light. Designed for both indoor and outdoor use in any environment, Stradale Profile stands apart with a distinctive visual signature. Lightweight construction plays a key role in its performance—tipping the scales at just 23.5 kg, it sets an unprecedented benchmark for its category. To unlock new creative possibilities, it features infinite continuous rotation on both pan and tilt axes. Equipped with a 140 mm front lens, its proprietary 13-lens optical system delivers a remarkable 13:1 zoom ratio, with a versatile range spanning from 4 ° to 52 °.

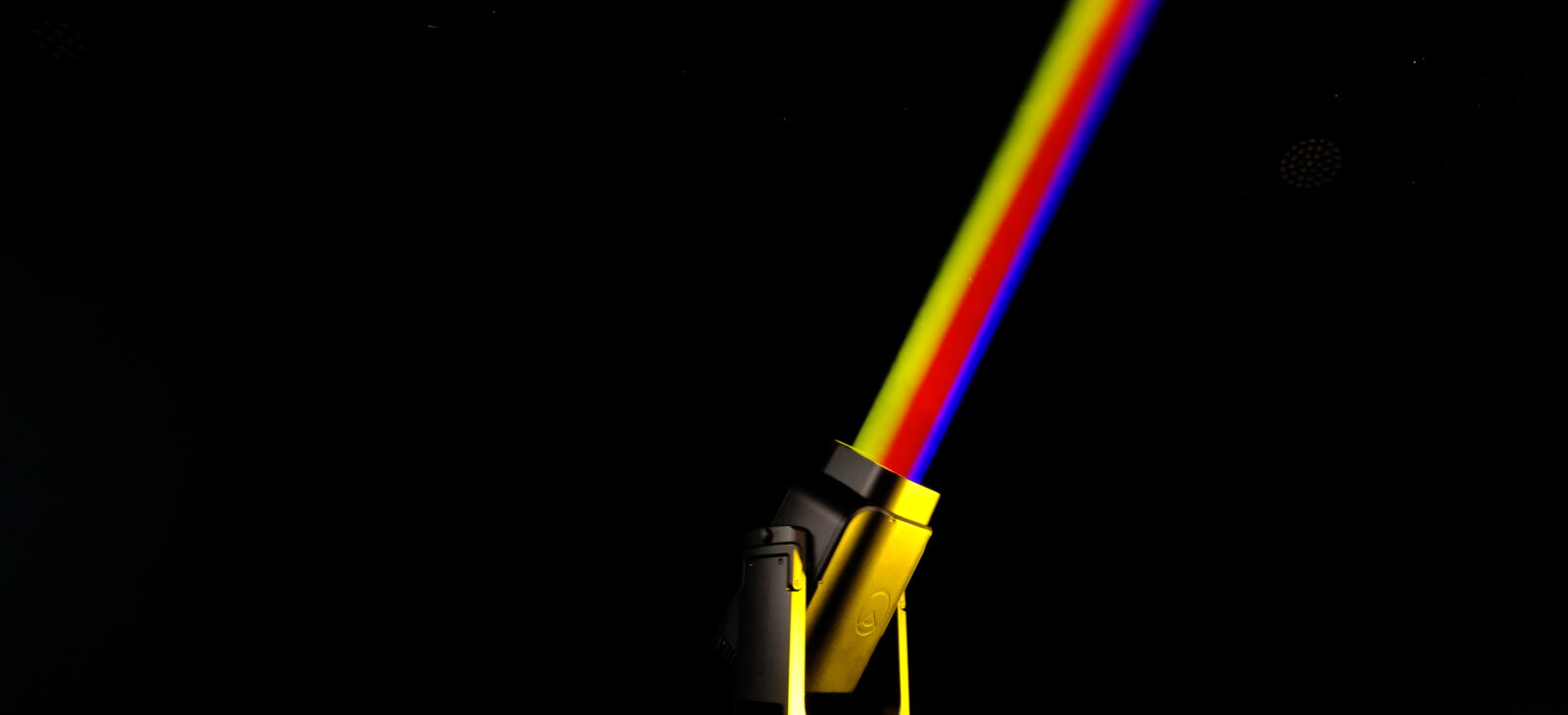

Stradale Profile introduces an all-new ultra-fast CMY progressive gradient mixing system, ensuring seamless colour transitions, brighter output, and impeccable uniformity.
A refined extended CTO system allows precise adjustment of colour temperature from 2700 K to 6500 K, while a seven-position colour wheel, equipped with specialised filters, expands the creative palette. For greater flexibility, Stradale Profile offers a fine-tuned colour rendering index adjustment from 70 to 86. The framing system provides precise positioning of each shutter blade across 100% of the beam with a rotation of +/- 90 °. A rapid 15-blade iris allows beam optimisation with an adjustable range from 15% to 100%. The image section includes 19 high-definition interchangeable glass gobos across two wheels—nine rotating and ten fixed—designed to elevate textural and aerial effects. The effects module features a monochromatic animation wheel and two combinable rotating prisms: a five-facet circular prism and a four-facet linear prism. Additionally, Stradale Profile offers two frost filters: one soft diffusion filter to smooth edges without altering the beam angle and a heavier diffusion filter for true wash applications. Stradale Profile is a one-of-a-kind luminaire, seamlessly merging performance, creativity, finesse, and power—an exceptional fixture with no equivalent on the market.
Performance
Technical specifications
OPTICS
- 13-element 13:1 zoom high-resolution optic system
- Zoom aperture: 4 ° to 52 °
- Fast motorised linear zoom
- Tempered anti-reflective coated lenses
- 140 mm frontal lens
LIGHT SOURCE
- 26,000 lumens white light engine
- Total luminaire output: up to 20,000 lumens (integrating sphere measurement, Stage Fan mode)
- Colour temperature output: 6500 K
- Variable CRI: 70 to 86
- Rated life (L70): up to 40,000 hours
- Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
- Extremely accurate positioning
- Moving-head operated via either 8- or 16-bit resolution
- High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
- Pan and tilt automatic repositioning
- Moving-head range: infinite pan and tilt rotation
COLOURS
- Sophisticated colour mixing system providing CMY color mixing
- Variable CTO colour temperature correction
- Variable CRI improvement filter
- Fixed colour wheel with seven complementary colours
- Multicoloured section
GOBOS
- Indexable rotating gobo wheel with nine high precision glass gobos, plus open position
- Adjustable-speed rotating gobo in both directions
- Fixed gobo wheel with 10 high-precision glass gobos, plus open position
- Gobo diameter: 18 mm
- Image diameter: 13 mm
- Gobo thickness: 1.1 mm
FRAMING SYSTEM
- 4 individually positionable shutter blades on a 100% surface area in all positions
- Rotation of the shutter blades module: +/- 90°
IRIS DIAPHRAGM
- Fast iris diaphragm with adjustable dynamic effects
- Iris range: 15% to 100% open
FROST
- 2 frost filters one light, one heavy
EFFECTS
- Focusable graphic animation effect-wheel with continuous rotation in both directions
- 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear
DIMMER / STROBE
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
- Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
- Information menu including hour counter, temperature, software version
HARDWARE FEATURES

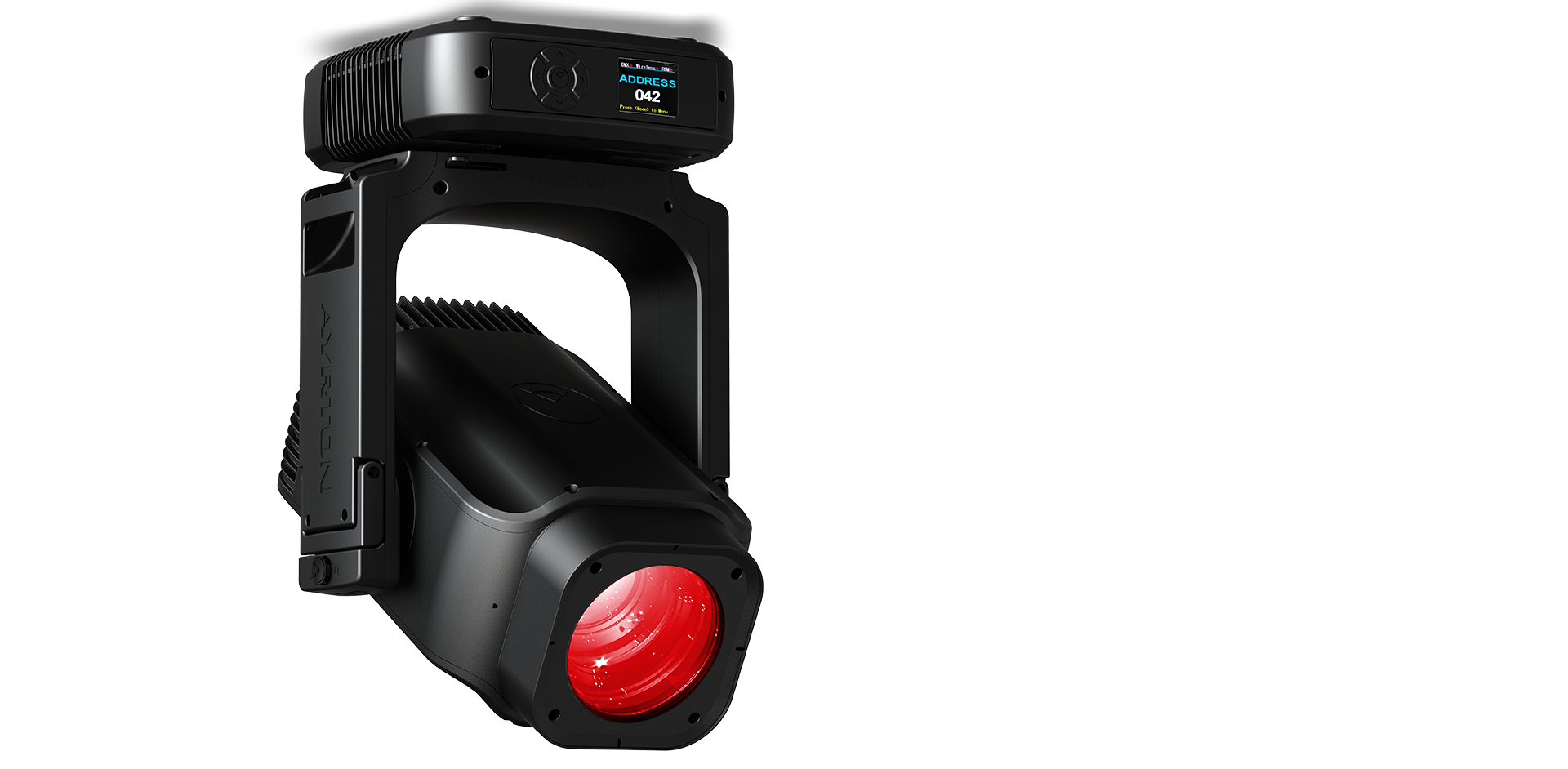

- Graphic LCD display for addressing and special functions settings, with flip function
- 5 menu buttons to set functions
- Excess temperature protection
- Integrated wireless CRMX TiMo RDM receiver from LumenRadio
- IP65 XLR 5 pin male and female connectors for DMX connection
- IP65 RJ45 IN / OUT connectors for ArtNet connection
- IP65 PowerCON TRUE1 male and female connectors for power connection
CONTROL
- DMX 512 protocol, through DMX cable or a wireless system
- DMX-RDM compatible
- Stand-alone mode and Master/Slave modes
- ArtNet & sACN protocol through Ethernet cable
- Local control panel, with IP65 LCD display
- Choice of 2 DMX modes (from 42 to 65 DMX channels)
POWER SUPPLY
- Electronic supply with active PFC
- 100 to 240 Volts – 50/60Hz
- Power: 580 W maximum
COOLING SYSTEM
- Advanced liquid cooling system
- IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
- Selectable ventilation user modes including Super Silent Mode
- Safety protection against excess temperature
HOUSING
- Moving-head skeleton made of aluminium and steel metal plates
- Base in die-cast composite alloy
- Heatsinks in aluminium and copper
- Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
- Four-side handles for transportation
- Four heavy-duty feet for better stability
- IP65 protection rating
- Exterior finish: black (Carbon)
INSTALLATION
- Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
- Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
- Safety cable attachment point
OPERATING PARAMETERS
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
- Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)
- Minimum usage distance: 2 m (6.56 ft)
COMPLIANCE
EU (EMC & LVD):
- EMC Directive 2014/30/EU
- LVD Directive 2014/35/EU
US (Safety & EMC)
- UL 1573
- FCC Part 15, Subpart B:2018
SIZE
- Product: 338 x 592 x 297 mm (l x h x d)
- Flight-case foam: 390 x 500 x 510 mm (l x h x d)
WEIGHT
- Product: 23.5 kg
PRODUCT CODES
- 012121: Stradale Profile – Ultimate IP65 1 Series
Copyright © 2001-2025 Ayrton SAS. All rights reserved - Specifications subject to change without notice.

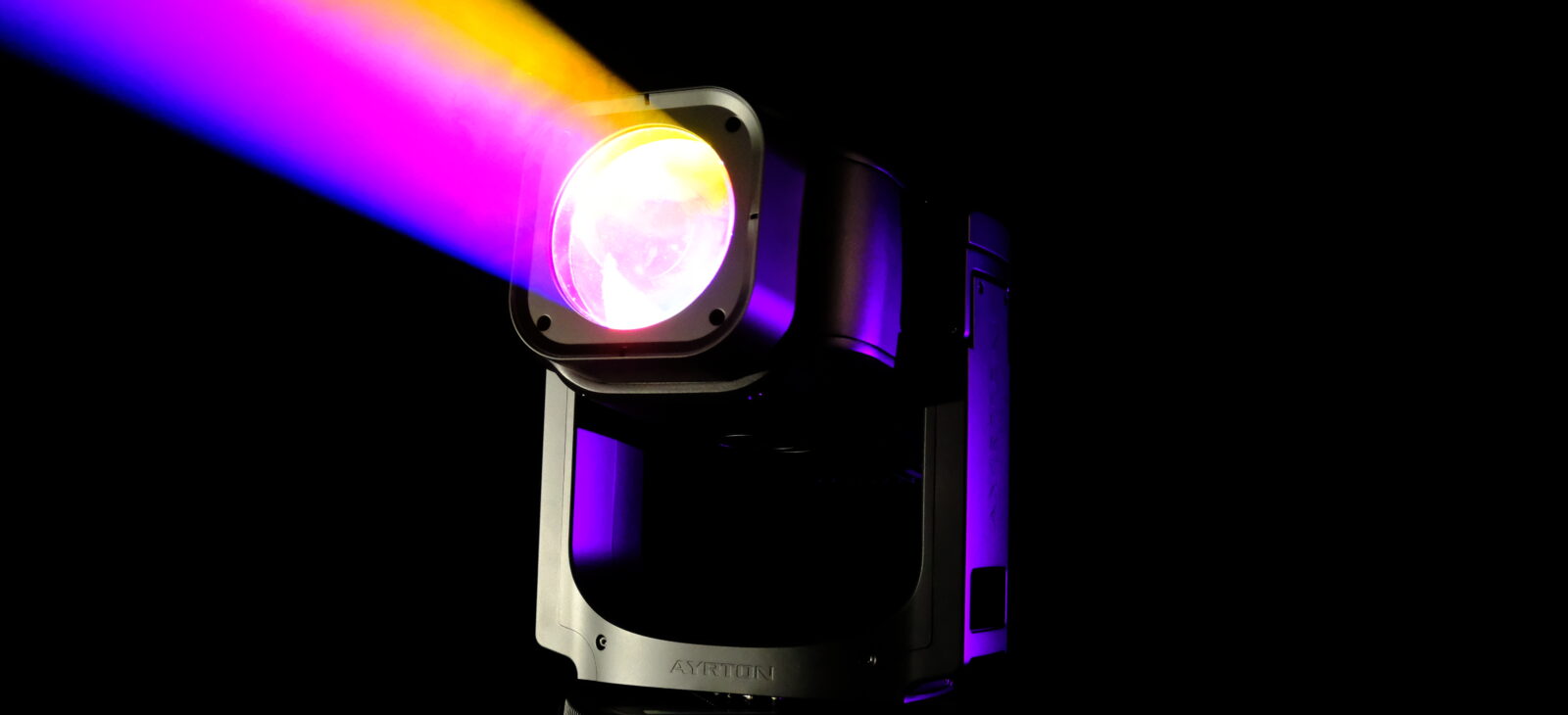

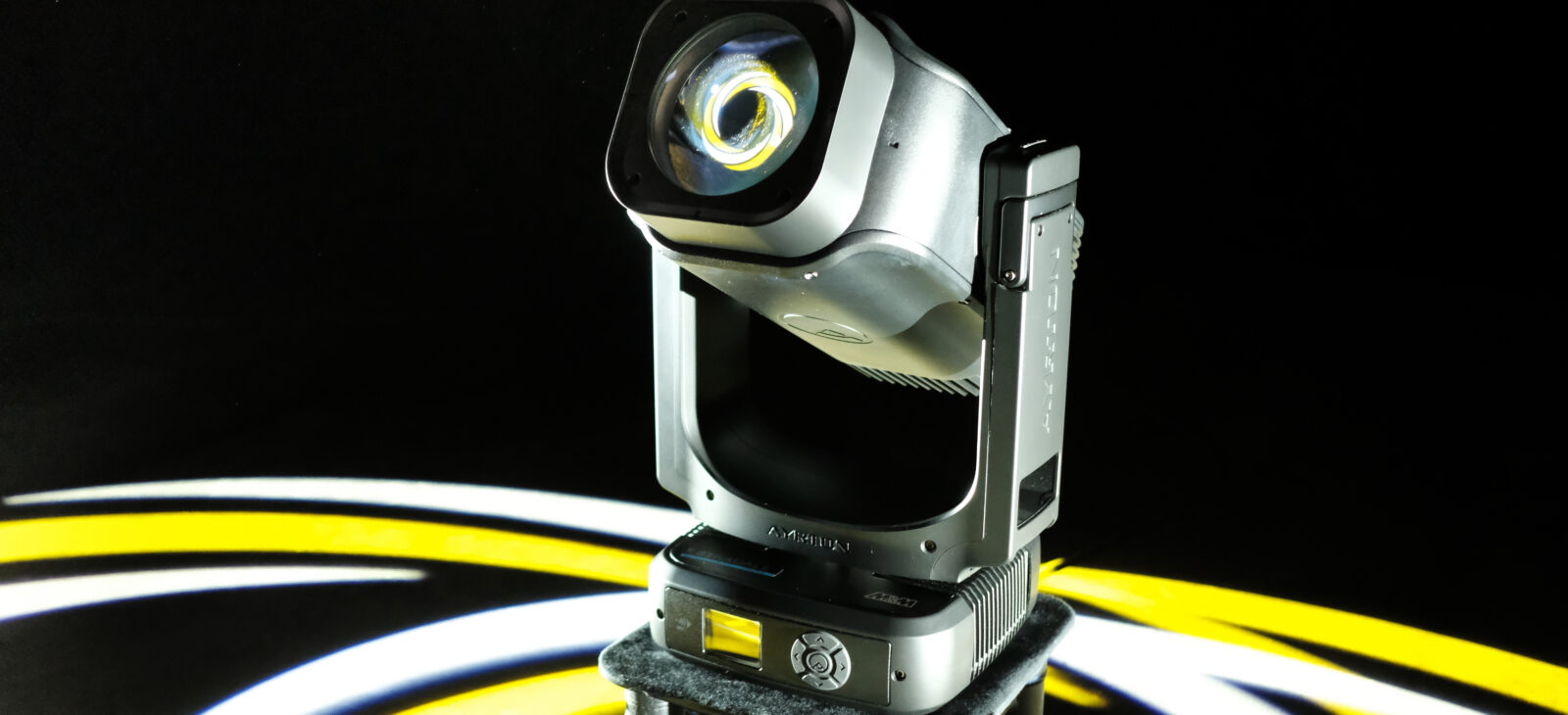

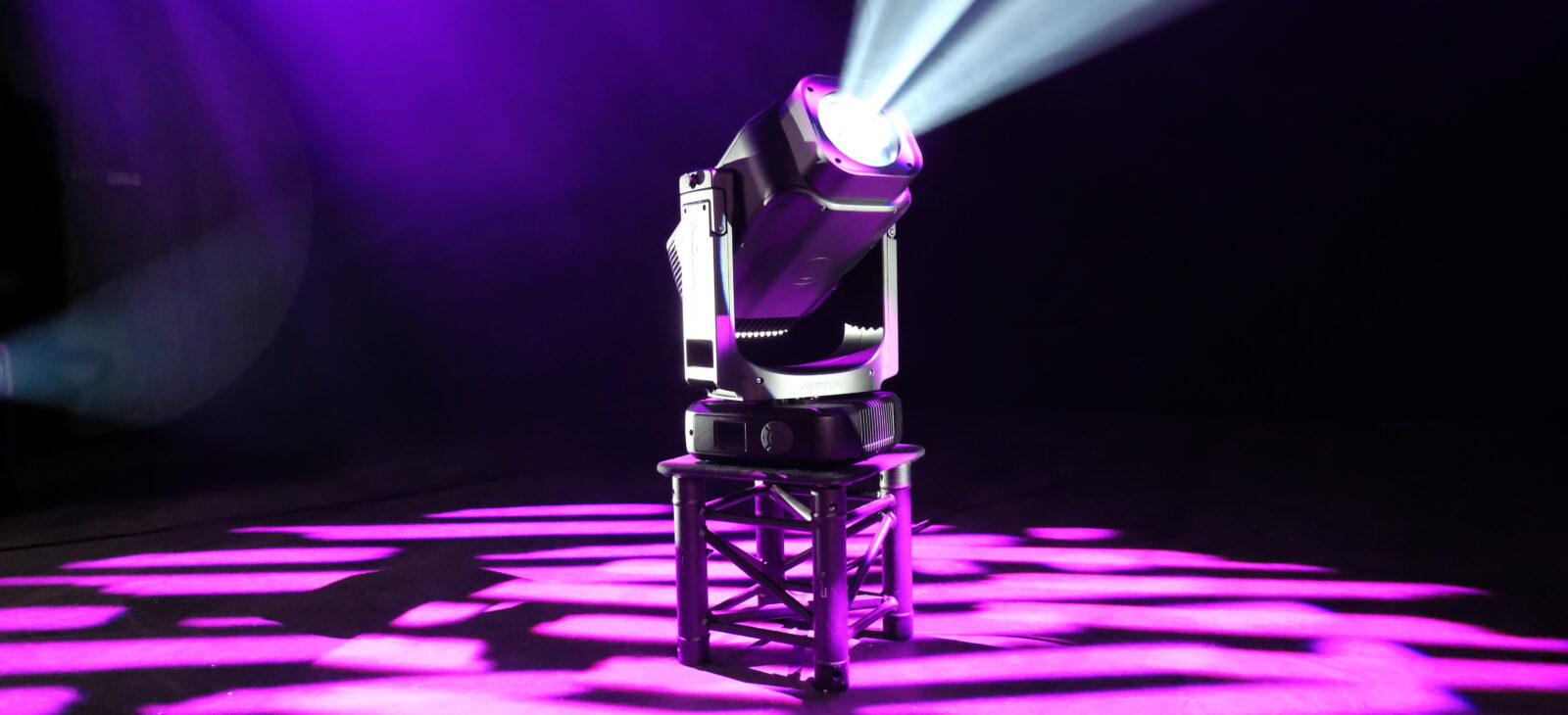

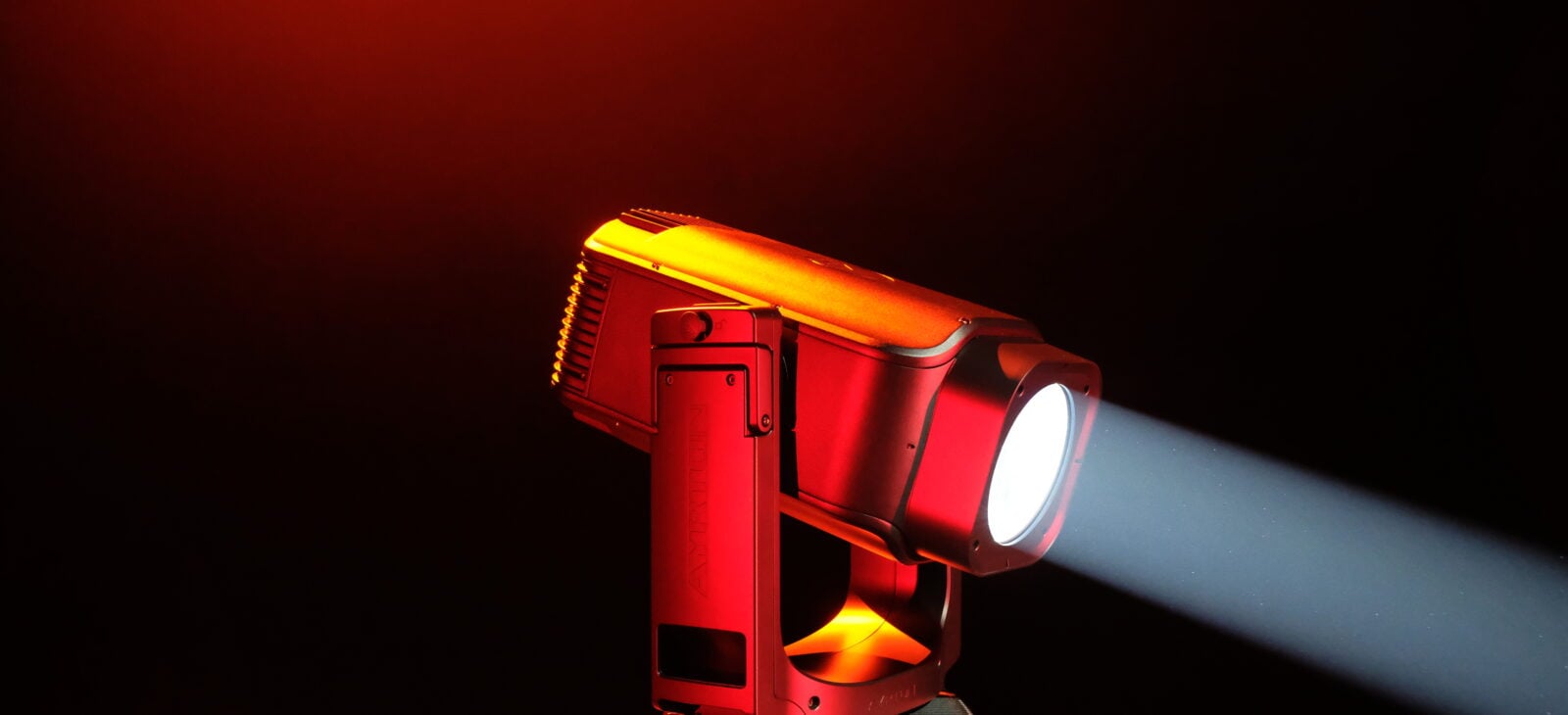

Gallery
